Batch Waste Tire & Plastic Pyrolysis Plant
Reliable, Cost-Effective Solution for Small to Medium Scale Recycling Businesses.
Pyrolysis Machine
Convert whole tires and mixed plastics into high-value fuel oil with low investment and flexible operation.
Ruike Pyrolysis Key Specs
The perfect balance of flexibility, cost, and efficiency.
- Capacity: 5,10,12, 15 Tons / Day
- Feedstock: Waste Tires, Rubber, Mixed Plastics (PP/PE/PS), Medical Waste.
- Safety: ASME Standard Reactor & Zero Emission
- Flexible Feeding Options, Upgrade with our automatic Hydraulic Auto-Feeder, increasing reactor capacity by 20%-30% and saving 2 hours of labor per batch.
- Lower Investment: Significantly lower entry cost compared to continuous lines, ensuring a faster Return on Investment (ROI).
- Easy Operation: Simple structure requires only 3-4 workers per shift. Easy to install, operate, and maintain.
The Pyrolysis Process: From Waste to Wealth
How It Works
- 1. Feeding (2-3 Hours): Load raw materials into the reactor via manual door or auto-feeder.
- 2. Heating (8-10 Hours): Fire the furnace. At ~160°C, oil gas is generated and flows to the manifold.
- 3. Condensing: Oil gas passes through our 3-Stage Cooling System and condenses into liquid fuel oil.
- 4. Tail Gas Recycling (Energy Saving): Non-condensable gas (C1-C4) is recycled to heat the reactor, reducing your fuel cost to near zero.
- 5. Emission Control: All exhaust smoke goes through the scrubber system, ensuring clean, white steam release.

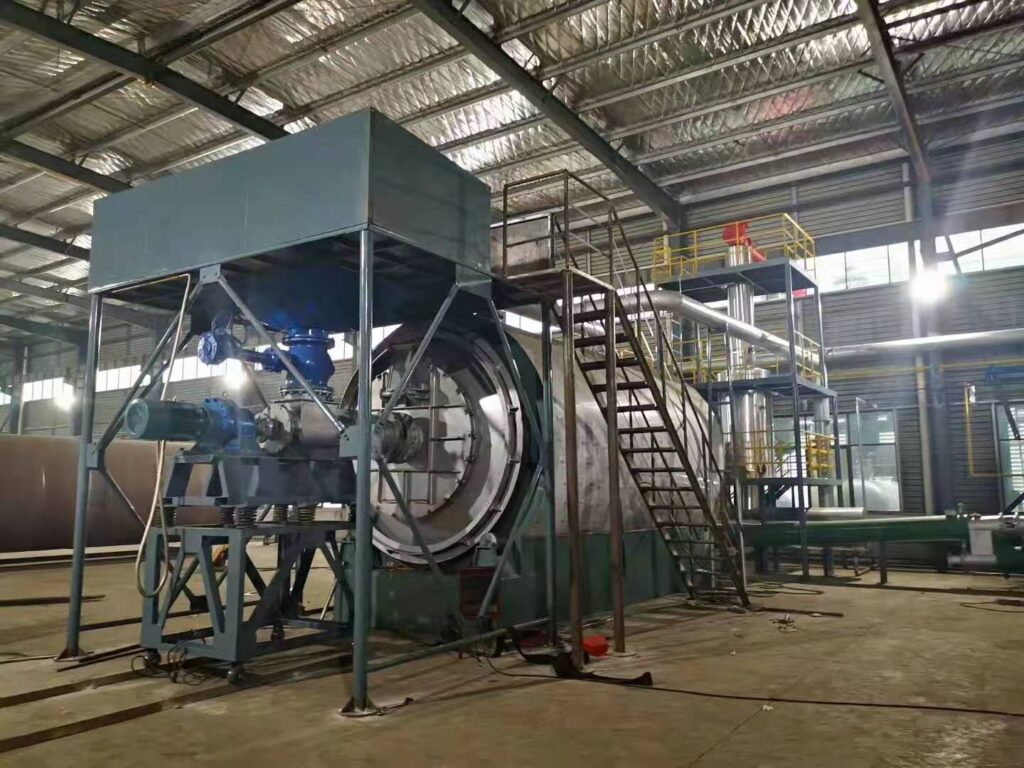

- 6. Discharging & Cooling: After the reactor cools down, carbon black and steel wire are discharged.
Available Models & Specifications
Model | Daily Capacity | Reactor Size (D*L) | Feeding Method | Cooling System | Floor Area (LWH) |
RKLJ-5 | 5 Tons | 2.2m * 6.0m | Manual / Auto | Tube Condensers | 30m * 12m * 8m |
RKLJ-10 | 10 Tons | 2.6m * 6.6m | Manual / Auto | Tube Condensers | 30m * 12m * 8m |
RKLJ-12 | 12 Tons | 2.8m * 6.6m | Manual / Auto | Tube Condensers | 30m * 12m * 8m |
RKLJ-15 | 15-16 Tons | 2.8m * 8.0m | Manual / Auto | Tube Condensers | 35m * 15m * 8m |
Note: We also offer a 1-Ton Skid-Mounted Unit for testing. Mini Unit Page
Engineered for Performance and Safety
ASME Standard Reactor:
Made of 16mm Q345R Boiler Plate Steel with curved heads. Built to withstand high temperature and pressure for a lifespan of 5-8 years.
Optional Hydraulic Auto-Feeder:
Pushes material with 60 tons of pressure, allowing you to load more material per batch and reduce labor intensity.
Unique Gear Drive:
Ensures steady rotation of the reactor even when fully loaded, preventing deformation common in friction-drive machines.
High Efficiency Cooling:
Our Vertical Tube Condensers increase heat exchange area by 40%, ensuring maximum oil yield compared to simple water ponds.
Global Success Stories
Zero Pollution & Energy Self-Sufficiency
Solving your biggest concerns: Smell and Smoke.
Tail Gas Recycling (Turn Gas into Fuel):
Non-condensable gas is recycled back to the furnace as heating fuel. This not only eliminates bad odors but also saves you significant fuel costs during operation.
Advanced Emission Control (Strict Compliance):
Equipped with a 4-Stage Dedusting System (Water spray -> Ceramic Ring Adsorption -> Activated Carbon -> Desulfurization). The final emission is clean white steam, fully compliant with EU and EPA standards.
Your Journey with Ruike: Simple, Transparent, Secure
How to Cooperate With Ruike Petrochemical
-
1. Consultation: Get a customized proposal and ROI analysis within 24 hours.
-
2. Factory Visit: Visit us in person or schedule a Live Video Tour.
-
3. Deposit: Sign contract and pay 30% deposit via T/T or L/C.
-
4. Manufacturing: Production starts (20-25 days). We send Weekly Photo/Video Updates of your machine.
-
5. Inspection: Video Inspection or SGS/Third-party inspection supported.
-
6. Shipping: Loading and delivery to your port.
-
7. Installation: Our engineers fly to your site for installation and training.
Worry-Free Logistics: From Factory to Your Site
Professional Packing & Shipping for Your Pyrolysis Machines
Optimized Loading:
We disassemble the plant to fit standard containers. A complete 10T/12T set typically fits in 1x40HQ + 1x40FR. We utilize every inch of space (e.g., packing parts inside the reactor) to save your ocean freight.
Safety Protection:
The main reactor is securely lashed onto the Flat Rack container. Small parts are packed in export-standard wooden boxes to prevent damage.
Clear Labeling:
Every pipe and flange is labeled with a unique ID matching the installation drawing for fast assembly.
FAQ for Batch Pyrolysis Plant
Q1: Do I need to shred the tires before pyrolysis?
It is Optional, depending on your budget.
No (Save Cost): You can load whole tires directly via the manual door. This saves you the investment of a shredder machine.
Yes (High Efficiency): If you choose to shred tires into 5-10cm pieces, you can use our Hydraulic Auto-Feeder. This increases feeding efficiency and allows you to load 20%-30% more material per batch compared to manual stacking.
Q2: How long does the feeding process take?
Manual Feeding: Approx. 2-3 hours (depending on labor speed).
Auto-Feeding: Approx. 1-1.5 hours (faster and less labor-intensive).
Q3: How long does one complete batch cycle take?
A standard cycle takes about 12-18 hours for the pyrolysis machine of capacity is 15 tons.
Feeding: 2 hours.
Heating & Pyrolysis: 8-10 hours.
Cooling Down: 2-4 hours (Crucial for safety).
Discharging (Carbon Black & Wire): 1- 2 hours (included in cooling down time ).
Note: This allows for one or 2 batches per day.
Q4: Will the plant produce bad smell or smoke during operation?
No. The entire system is fully sealed.
- Smell: The “smelly” non-condensable gas (Tail Gas) is recycled into the furnace and burned as heating fuel, eliminating odor.
Smoke: All exhaust smoke passes through our 4-Stage Scrubber System. The final emission is clean white steam, compliant with EU and EPA
Q5: Is the tail gas recycling safe? Will it explode?
It is 100% safe. We install a specialized Water Seal Device and Flame Arrestor in the gas line. This acts as a one-way safety barrier—gas can flow into the furnace to burn, but fire cannot travel back into the pipeline, preventing any risk of backfire.
Q6: How many containers are needed for one set of RKLJ-12 (12T) machine?
Typically, one set of RKLJ-12 requires:
1x 40ft High Cube (40HQ) container for accessories.
1x 40ft Flat Rack (40FR) container for the main reactor (over-width).
We optimize loading by packing small parts inside the reactor to save your ocean freight.
Q7: How long is the manufacturing time?
For standard Batch models RKLJ-5/10/12), the production time is 20-25 working days. For customized orders, it may take 30-35 days.
Q8: What if I can't come to China for inspection?
No problem. We provide a Live Video Inspection Service. Before shipping, we will live-stream the machine operation, show you the pressure test results, and measure steel thickness for you in real-time. We also accept third-party inspection (like SGS).
